Early Bushfire Detection on IoT Sensors (GGM-VAE & Hybrid-VAE)

As I’m sure we’re all too aware, bushfires are becoming more frequent and more severe, in Australia and around the world. To reduce their impact on people, wildlife and infrastructure, we need to know about fires early. Fire spreads quickly – minutes matter.

Most current systems (satellites, cameras, fire towers) rely on line of sight and fires being large enough to see. By the time a plume is visible from orbit, the fire can already be huge.

This project looks at a different layer in the early-warning stack: environmental ground sensors. These small Internet of Things (IoT) nodes measure things like estimated CO₂ and total volatile compounds (TVOC), key indicators of smoke. The idea is simple:

Train on what “normal air” looks like, then flag fires as anomalies – and do it on the node.

I focus on the edge node: the sensor that takes the reading and makes the first decision about whether something is wrong. There’s been work on combining many nodes to reduce false alarms, but my scope is: given a single node, how far can we push unsupervised deep learning for early detection, under tight hardware constraints?

I framed the work around two questions:

What unsupervised deep learning anomaly detection algorithms can we develop and optimise for early bushfire detection on IoT sensor nodes?
Can those algorithms actually run on inexpensive, constrained IoT hardware effectively?

To answer that, I built and compared two models:

A GRU Gaussian-Mixture VAE (GGM-VAE)
A Hybrid-VAE (STFT-CNN-GRU-VAE) that adds a frequency-domain branch

Dataset and metrics

The dataset comes from the ANU Bushfire Initiative and uses measurements sampled at 1 Hz. For this project I use:

eCO₂ and TVOC as the main features
6 burn experiments, giving 8 valid ignitions
About 65k burn samples and 245k background samples

In an ideal world we’d have perfect labels saying “this sample is fire” and “this sample is not fire”. In practice, smoke flow is messy:

If the wind blows smoke away from a sensor, that node may never “see” the fire.
During training, a standard labelled approach would punish the model for failing to detect a fire it never had evidence for.
Over time, the model can actually learn that some normal-but-windy cases look like “fire” because of the labels. This is the ground-truth ambiguity problem.

To avoid baking this into the model, I use unsupervised training: only non-burn background data is used to learn what “normal” looks like. Fires are treated as out-of-distribution events at test time.

Because the labels are unreliable at the window level, the evaluation is defined at the experiment level:

Any detection within 20 minutes after ignition counts as a true positive for that burn.
Only the first detection counts; double-ups don’t increase the score.
If an experiment has a fire and we never detect it within the allowed window, that is a false negative.
On the background test split, every window is a chance for a false positive, so the dataset is highly imbalanced.

Key metrics:

Experiment-level hit rate – how many of the 8 ignitions were detected at least once.
False positive rate (FPR) – fraction of background windows misclassified as fire.
F1-score – balances true positives and false positives, but in this setting it is heavily penalised by even small FPRs because there are so many more background windows than fire events.
Latency to first hit – time from ignition to first detection; this is where “minutes matter”.

Under this setup, a model can easily have an overall accuracy around 0.99 (because almost every window is normal) while still getting a relatively low F1-score, simply because even a tiny FPR contributes a lot of false positives. So my F1-scores aren’t directly comparable to much of the literature, but they are honest about the imbalance and label uncertainty in this kind of data.

Model 1 – GGM-VAE (time-domain GRU VAE with mixture prior)

The first model is a Gated Recurrent Unit (GRU) Gaussian Mixture Variational Autoencoder, or GGM-VAE. It builds on LSTM-VAEs from the literature, swapping the LSTM for a GRU to reduce parameters and complexity.

Input features

eCO₂ and TVOC at 1 Hz
First-order differences of each, so the model sees trend and rate of change as well as absolute level

Architecture

A GRU encoder reads the time series window and compresses it into one latent vector.
A VAE head outputs parameters of a latent distribution and a Gaussian mixture prior, so the model can represent multi-modal “normal” behaviour.
A GRU decoder reconstructs the input window during training.

The VAE doesn’t just compress – it structures the latent space. In a standard GRU-VAE we encourage all normal data to form a single Gaussian “blob” in latent space. The Gaussian mixture model relaxes that assumption and lets normal behaviour split into multiple clusters, for example:

Day vs night
Different background regimes
Human/animal disturbance near the sensor

Anomaly score

I use a latent-only score based on KL divergence between the approximate posterior and the learned mixture prior. Intuitively: if a latent point sits in a region the model believes is unlikely under the “normal” mixture, it’s more anomalous.

The threshold is chosen in a way that’s consistent across models:

the lowest false positive rate at which all fires are still detected.

This choice is important because it reflects the deployment reality: we don’t want to miss fires, and within that constraint we want to push FPR as low as possible.

Interestingly, on this dataset the optimal GGM-VAE collapses to a single effective mode and a latent dimension of 1, meaning the key “fire vs normal” information can be represented by a single scalar in latent space.

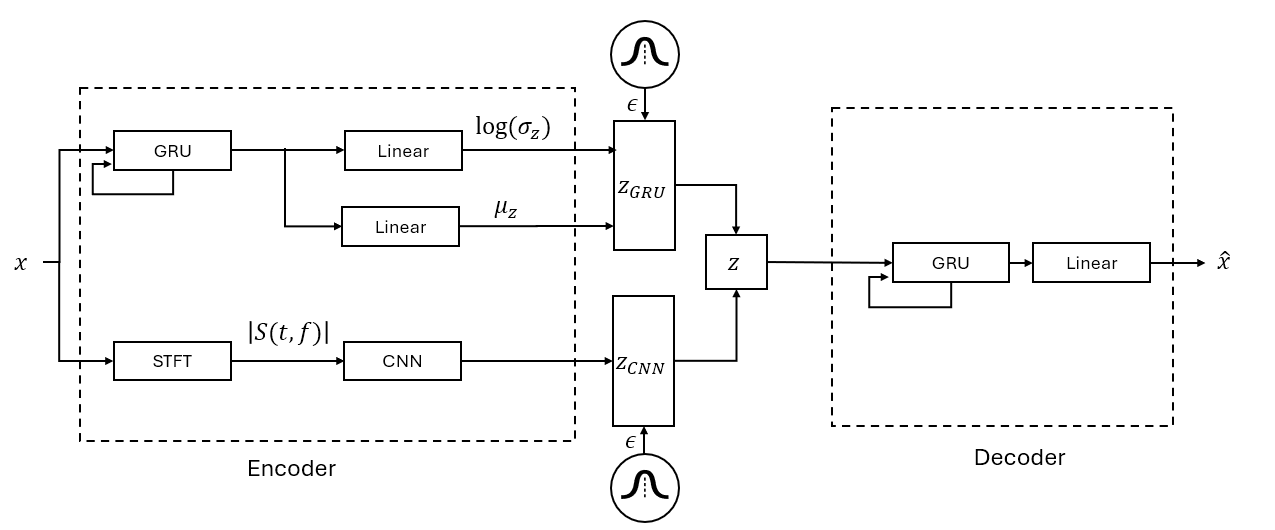

Model 2 – Hybrid-VAE (STFT-CNN-GRU-VAE)

The second model takes the successful parts of the GGM-VAE and asks:

Can we do better by replacing hand-crafted first differences with a learned frequency-domain view?

Frequency front end

I compute Short-Time Fourier Transforms (STFTs) on eCO₂ and TVOC, producing small spectrograms.
Spectra are log-scaled and stacked into a 2D time–frequency image per window.
In early analysis, burn vs normal spectrograms showed clear differences, especially in low-frequency content.

CNN + GRU hybrid

A compact 2D CNN processes the spectrogram, learning local time–frequency patterns (bursts, recovery shapes, etc.).
A GRU processes the raw time series in parallel.
The two branches are fused in the latent space before the VAE heads.
Training uses a combined loss that encourages good reconstructions in both domains.

This gives the Hybrid-VAE more expressive power but also many more hyperparameters, and as you’d expect:

FLOPs and parameter count increase dramatically.
The model becomes much harder to squeeze into an IoT node.

In the final tuned version, the Hybrid-VAE is still better than the simple threshold baseline, but not as strong as the GGM-VAE on F1 and FPR. It also ends up collapsing its STFT windows in a way that suggests the added complexity is not being fully exploited on this dataset.

Results – accuracy vs complexity

Summarising the three approaches:

Baseline: simple eCO₂ threshold
GGM-VAE: time-domain GRU-VAE with a mixture prior
Hybrid-VAE: STFT-CNN-GRU-VAE

At a threshold setting where all 8 fires are detected:

Experiment-level hit rate
- All three methods: 100% (all ignitions detected at least once)
Average first detection time
- Threshold: ~474 s
- GGM-VAE: ~236 s
- Hybrid-VAE: ~230 s
Window-level FPR
- Threshold: ~0.25%
- Hybrid-VAE: ~0.076%
- GGM-VAE: ~0.038%
F1-score
- Threshold: ~0.15
- Hybrid-VAE: ~0.35
- GGM-VAE: ~0.57

These F1-scores look low on paper, but that’s entirely due to the event-based metric and extreme class imbalance: there are only 8 possible true positives but tens of thousands of possible false positives. Even a very small FPR therefore creates a lot of false positives and drags F1 down. Under the same operating points, a simple accuracy metric would be around 0.99 for all models, which is why I prefer to highlight F1, FPR and detection latency instead.

Both deep models detect fires roughly four minutes after ignition, more than 200 seconds faster than the baseline. The Hybrid-VAE is slightly quicker than the GGM-VAE, but the GGM-VAE:

Achieves higher F1
Has about half the false positive rate
Is much cheaper in FLOPs and parameters

When I sweep the threshold, the GGM-VAE also shows a better latency–F1 trade-off than the Hybrid-VAE, meaning it’s the more flexible model for deployment tuning.

Hardware implementation – getting it onto a node

The final step is to ask: can we run these on real hardware?

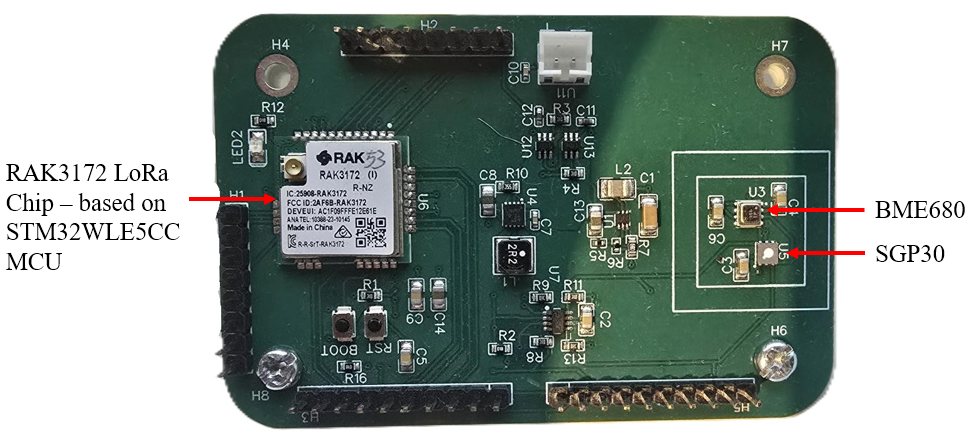

The target is an ANU IoT sensor node:

MCU & radio. STM32WLE5-class RAK LoRa module (RAK3172) with LoRaWAN AU915, Class A, OTAA.
Sensors. SGP30 (eCO₂, TVOC) and BME680 (temperature, humidity, pressure).
Constraints. About 200 KB of writable ROM; once libraries, drivers and LoRa stack are included, only ≈30 KB remains for the model.

I exported trained PyTorch weights to C++, added timing printouts, and measured:

ROM usage – total flash footprint including model
Inference time – latency per window at 1 Hz sampling
Power – using a bench supply and multimeter to see if the model meaningfully changes draw

Key findings:

The Hybrid-VAE is simply too big. Even with symmetric int8 quantisation (32-bit floats → 8-bit ints), its parameters don’t fit in the remaining flash.
The GGM-VAE fits comfortably, with the full application image around 174 KB.
Inference time for a 15 s window sits around 130–170 ms, well within the 1 Hz sampling budget.
Power draw is dominated by the sensors and radio; adding the GGM-VAE does not significantly increase consumption compared with the threshold baseline.

In other words:

On this hardware, you can have deep learning on the node – but you have to pick your battles. The compact GGM-VAE works; the larger Hybrid-VAE is a prototype for the next generation of nodes.

Pulling it back to the research questions

Coming back to where we started:

What unsupervised deep learning algorithms can we develop for early bushfire detection on IoT nodes?
- Both the GGM-VAE and Hybrid-VAE improve local performance over a threshold baseline.
- The GGM-VAE is the strongest overall, with the best F1-score and lowest false positive rate.
Can these algorithms be implemented effectively on sensor hardware?
- The GGM-VAE runs on a constrained STM32WLE5 LoRa node, hitting timing and memory limits with comparable power to the threshold method.
- The Hybrid-VAE highlights where the pain points are: flash and complexity, not just FLOPs.

The project gives a practical accuracy–complexity trade-off for early bushfire detection and a reproducible path from training to firmware. It also sets up the next step: combining nodes spatially, and exploring lighter frequency-domain models that preserve the gains of the Hybrid-VAE while fitting on real hardware.
